RF Shielding Paints

Please contact us for selection of the appropriate paint for your situation, at sales@defiltersllc.com

We at DE Filters are now able to provide three different classes of 5G protection paints, plus a special coating for windows and window frames that you spray on to the window frame and glass that provide 5G protection with coatings for indoors or outdoor application. The Liquid and Dry Y Shield type paint will mitigate RF and Electric Fields with the addition of a grounding plate and conductive tape. Based on our testing in the field the real attenuation is between 20 to 25 dB.

Liquid Y Shield Paint – Dries black in color

Liquid Y Shield Paint – 20 Liter Pail – $899.95 plus tax and shipping

Liquid Y Shield Paint 5 Liter Pail – $329.00 plus tax and shipping

Liquid Y Shield Paint 1 Liter Can – $69.95 plus tax and shipping

Y Shield Paint (Part. #A290-5L) …………… $329.00

Y-shield Ground Kit

Grounding Kit (Part. #A290-GRD) …………… $39.95

Our Grounding Kit is required for all shielding paints in addition you should obtain the small grounding plug show below.

Product Name (Part. #A235) …………… $11.95

To buy a complete kit of both items A290 and A235 please select the following Pay Pal button. $51.90 plus Tax and Shipping

To buy extra rolls of conductive tape (25 ft per roll) Item A225, $19.95 per roll plus sales tax and shipping.





Our X Shield Paint ® has 50 dB attenuation minimum at 40 GHz – a Dry Y Shield type paint – with no expiration date and much cheaper to ship (and it will not freeze) plus taxes and shipping, minimum order of 10 Liters. it dries black in color. Note: this is just like Y shield paint but is a much better application because of a higher attenuation (50 dB) and because it ships in dry powder form and has an almost inexhaustible shelf life. It is a totally non volatile compound that dries is less than 95 minutes between coats. If you are chemically sensitive this paint will not affect you. You mix it with plain water. This paint must be grounded via a grounding kit. We have an exterior grade paint also, just ask us for details.

Please see the following information on attenuation by frequency , note the numbers on the left part of the chart are for only one coat, the second set of numbers is for two coats of paint.

             Screen damping in dB
Radio/Frequency  X Shield – EMF-Turtal, 5m2/LiterX Shield EMF-Turtal, 2,5m2/l
C-network, TETRA, 450 MHz27 dB32 dB
D-network, GSM900, 900 MHz27 dB32 dB
1 GHz27 dB32 dB
E-grid, GSM1800, 1800 MHz27 dB32 dB
Blue-Tooth, WLAN 2450 MHz28 dB33 dB
5G (Sub 6GHz-Band) 3,4 – 3,8GHz30 dB36 dB
Wi-Fi new generation 5.8 GHz30 dB38 dB
  7,5 GHz31 dB38 dB
10,0 GHz31 dB44 dB
12,5 GHz32 dB44 dB
15,0 GHz32 dB44 dB
17,5 GHz37 dB44 dB
20,0 GHz39 dB49 dB
22,5 GHz40 dB53 dB
25,0 GHz45 dB57 dB
27,5 GHz47 dB59 dB
30,0 GHz49 dB61 dB
32,5 GHz50 dB62 dB
35,0 GHz52 dB63 dB
37,5 GHz56 dB64 dB
40,0 GHz57 dB64 dB





Dry Powder X Shield Paint ® 5 liter bag – $299.00 plus tax and shipping

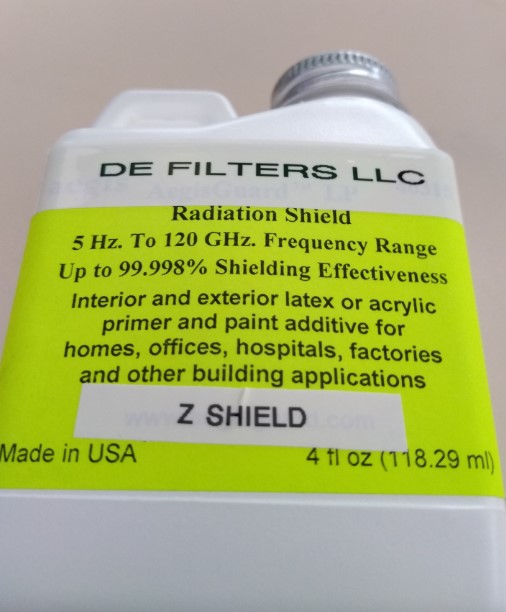

Our Z Shield ® paint is a liquid paint additive that is very different than our Y and X Shield paint. It is shipped in 4 oz containers as a Latex primer additive that you add to one gallon of premixed paint. It can be added to a finish coat, with the need for a second coat to cover the slight discoloration from adding the paint to the finish gallon. This paint additive can be used on exteriors or interiors. It does not provide electric field mitigation. Only RF field attenuation, of 40-45 dB in four formulations from 5 Hz to 1.1 THz. We recommend Z Shield Paint 1 for most situations.

Z Shield Paint ® 1 – 5 Hz to 30 GHz – $255.00 per 4 oz (for up to 1 Liter) – $255.00 plus tax and shipping






Z Shield Paint ® 2 – 5 Hz to 120 GHz – $465.00 per 4 oz (for up to 1 Liter) – $465.00 plus tax and shipping






Z Shield Paint 3 ® – 5 Hz to 360 GHz – $1,1600 per 4 oz (for up to 1 Liter) – $1,160.00 plus tax and shipping






Z Shield Paint ® 4 – 5 Hz to 1.1 THz – $3,590.00 per 4 oz (up to 1 Liter) – $3,590.00 plus tax and shipping

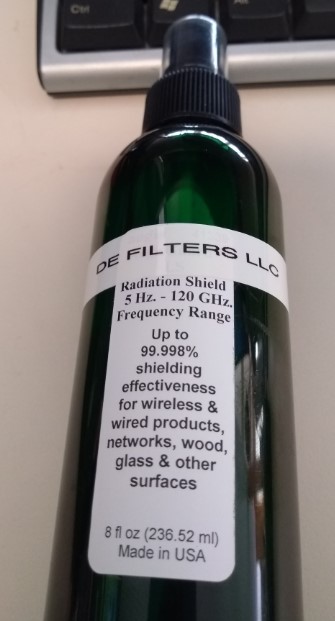

Our Special EZ Spray ® for windows and window frames, spray it on and wipe it off. Protects your window glass and frames. We recommend EZ 1 for most applications.

EZ 1 – 8 oz bottle – 5 Hz to 30 GHz – $529.00 plus tax and shipping

EZ 2 – 8 oz bottle – 5 Hz to 120 GHz – $1,110.00 plus tax and shipping

EZ 3 – 8 oz bottle – 5 Hz to 360 GHz- $4,150.00 plus tax and shipping

EZ 4 – 8 oz bottle – 5 Hz to 1.1 THz – $20,10.00 plus tax and shipping

Our return policy is no returns are allowed for any of our paints.
